JReality CM Creator
Overview
CM (Compartmentalized Model) Creator is an
early-stage Computer-Aided Design (CAD) program
for creation, analyses, prototyping, and export of
Compartmentalized Models.
Compartmentalized Model
A Compartmentalized Model (CModel) is a digital description of the exterior
and interior of a habitable structure such as a building, ship, or
other habitat. The interior is typically subdivided into compartments and
spaces for purposes such as human factors, control of damage, and isolation
of various payloads and systems.
CM Creator is designed specifically for efficient modeling of interior
subdivision, including complex arrangements typically found in large
commercial buildings and naval vessels.
Early-Stage Design

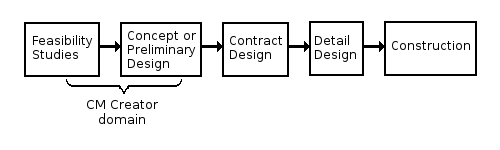

The design of complex habitable structures typically follows a staged
development process similar to the following:
CM Creator is targeted specifically to the back end of Feasibility Studies
as well as the Concept or Preliminary Design stages, as indicated above.
While many existing CAD tools are in widespread use in the later design
stages, relatively few exist specifically for early-stage design, and fewer
still for efficient modeling of complex interior subdivision.
CM Creator helps fill this gap.
Capabilities
CM Creator is supports four major capabilities.
Features
CM Creator incorporates several
features and technologies
found in few, if any, current CAD tools.
Distribution
CM Creator helps fill another sparsely-populated region of the CAD spectrum,
namely, the availability of
portable, open source
CAD software.
Volunteering
Because it is open source, many opportunities exist to
contribute
to CM Creator.
Technology Transfer
Software vendors who may wish to incorporate any of CM Creator's technologies
into their own products have several options.
